Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)

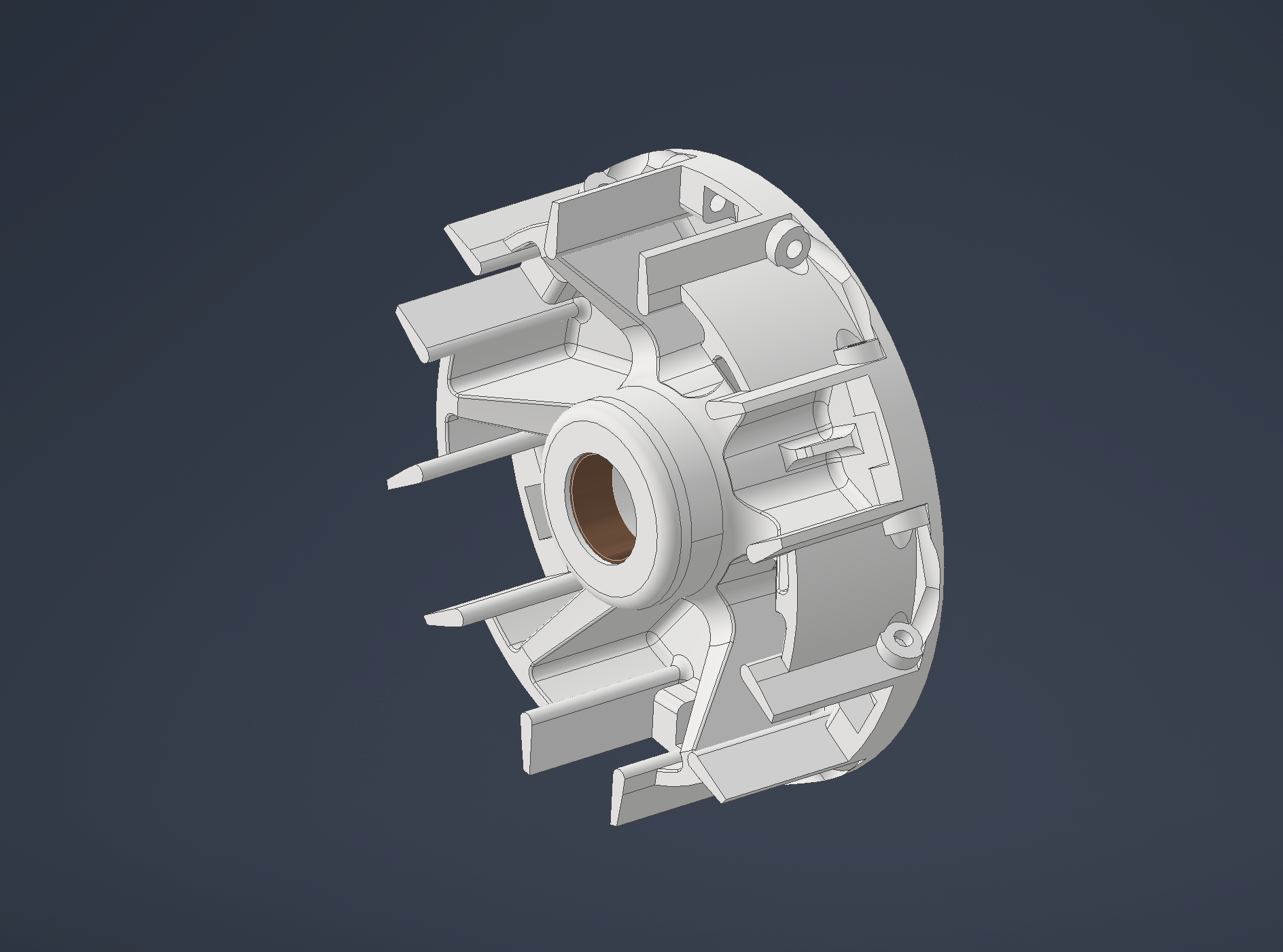

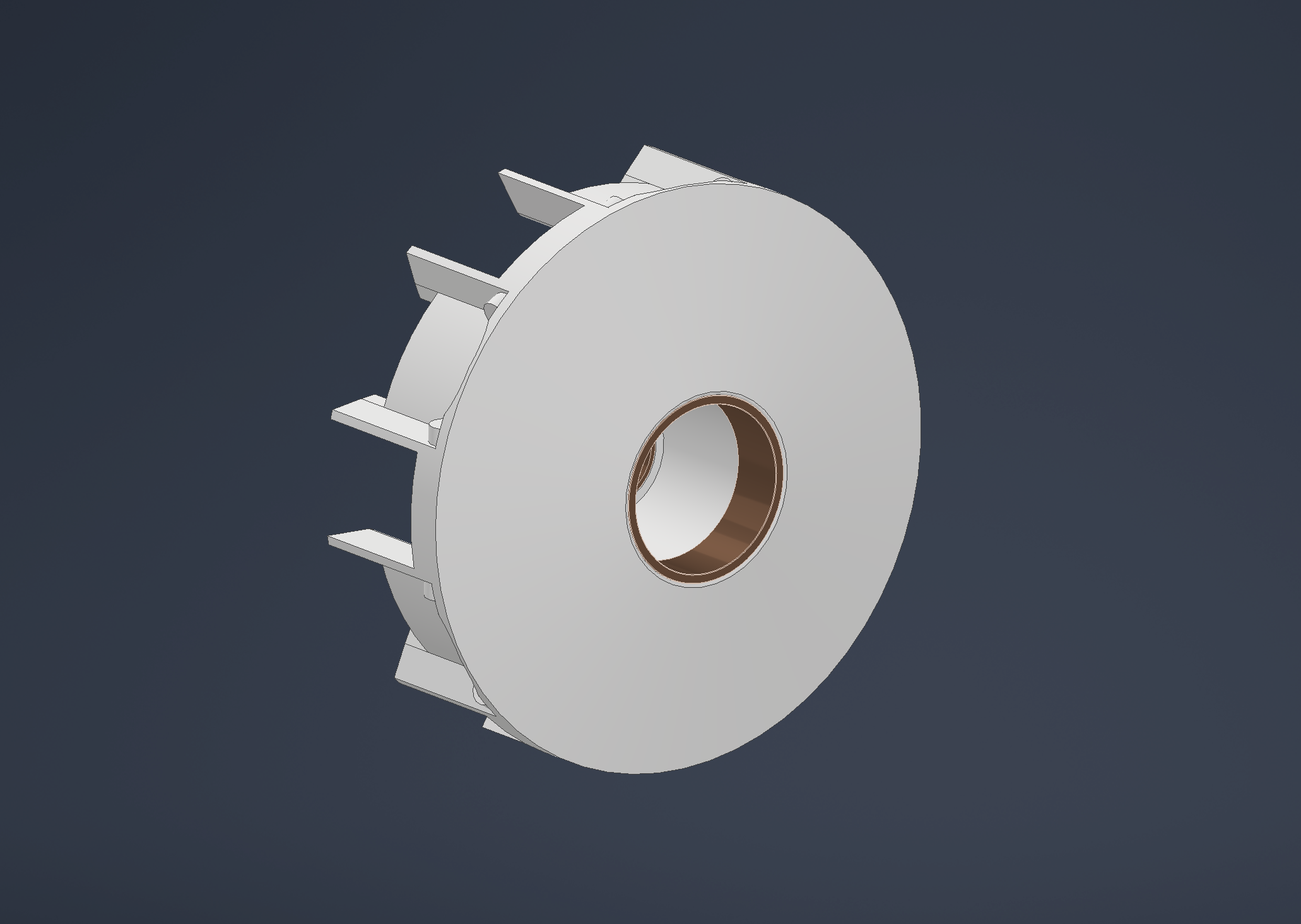

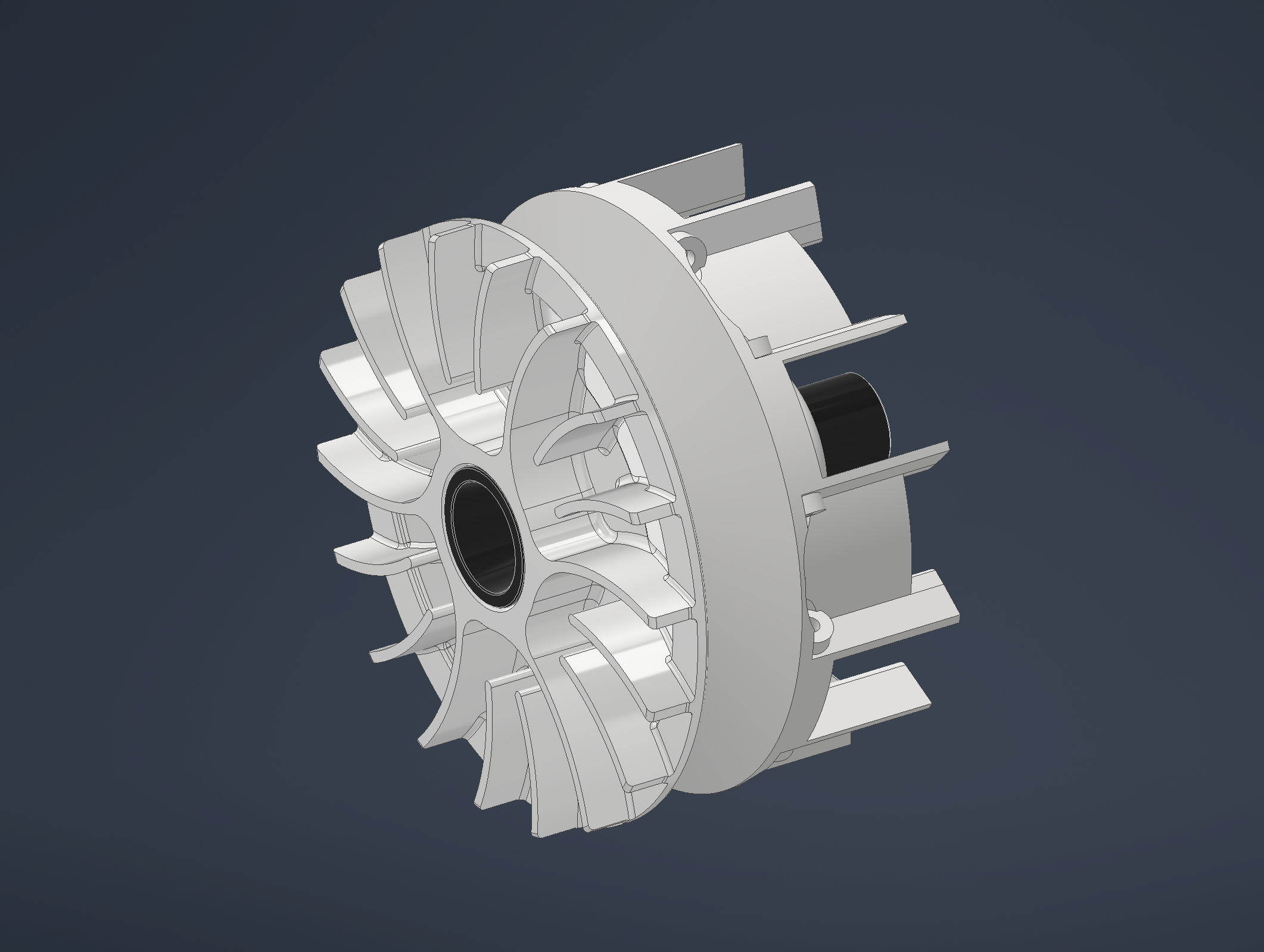

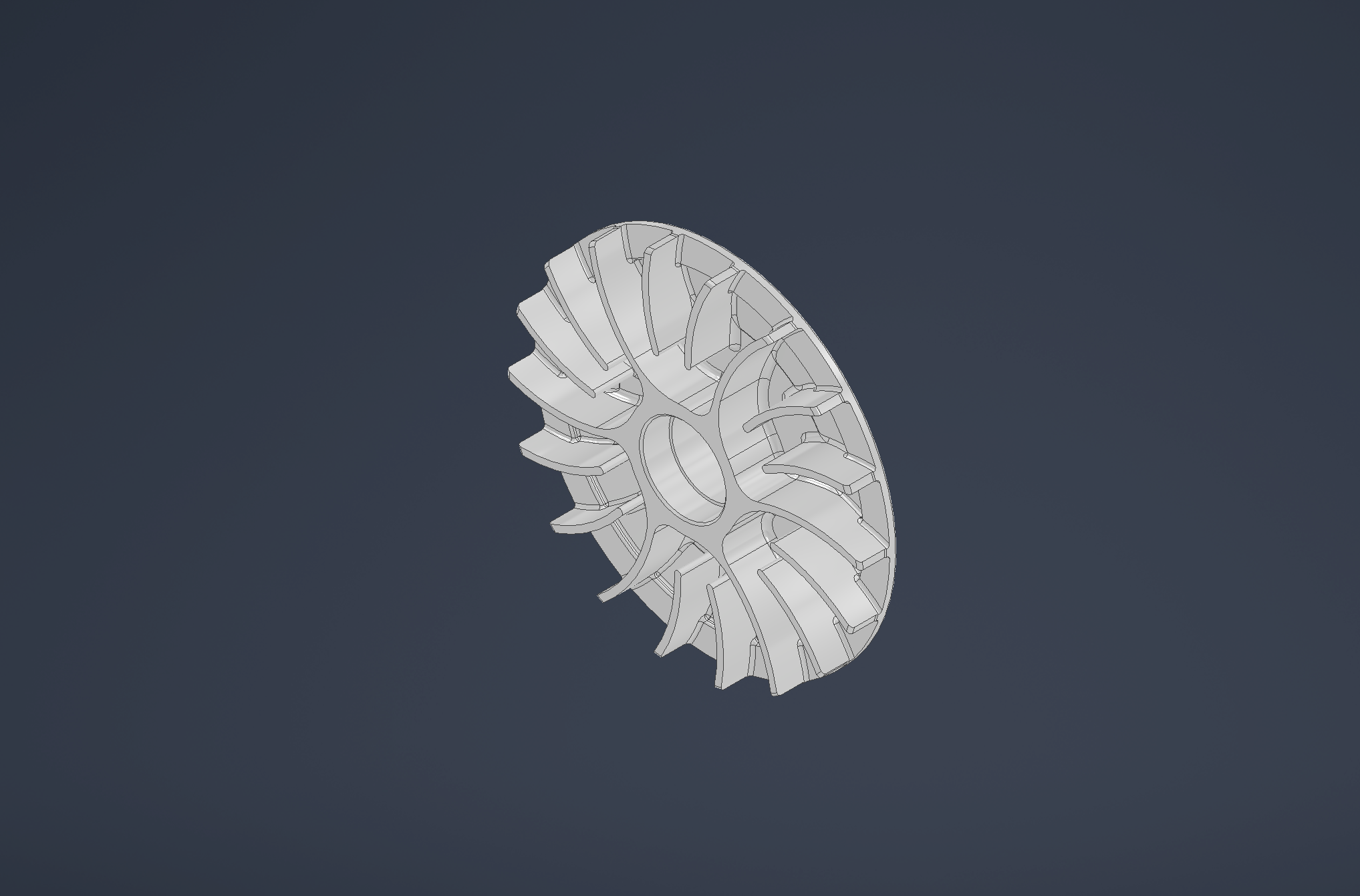

Driven clutch pressure disc from a snowmobile CVT (continuously variable transmission). Original part discontinued. Full geometry measured from worn component, 3D model created in Inventor with complex blade surface geometry, complete manufacturing documentation developed. Material: aluminum alloy.

Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)
Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)
Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)
Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)
Reverse Engineering — CVT Driven Clutch Disc (Snowmobile Variator)
