POS Counter Bar — Commercial Millwork Shop Drawings

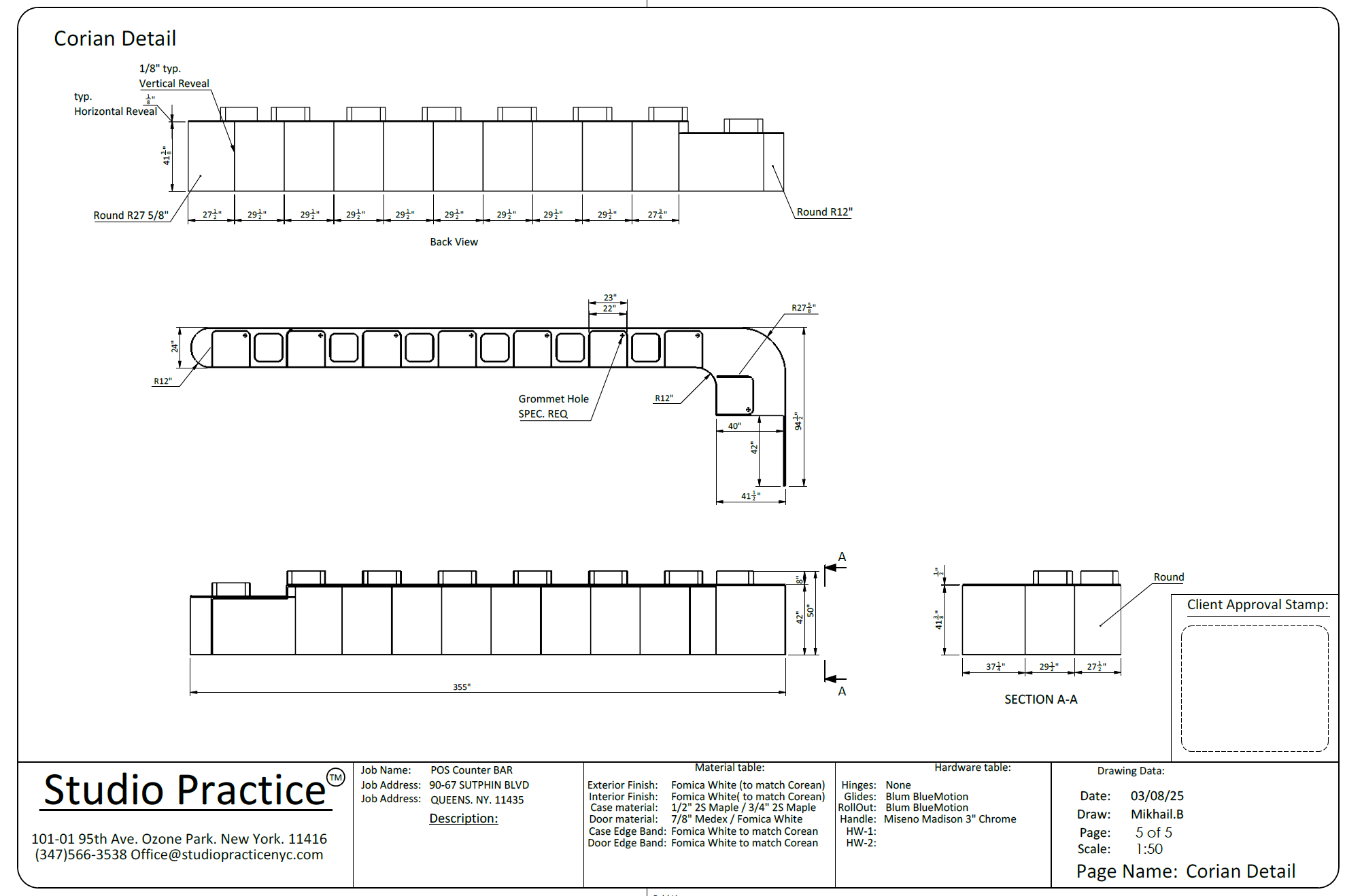

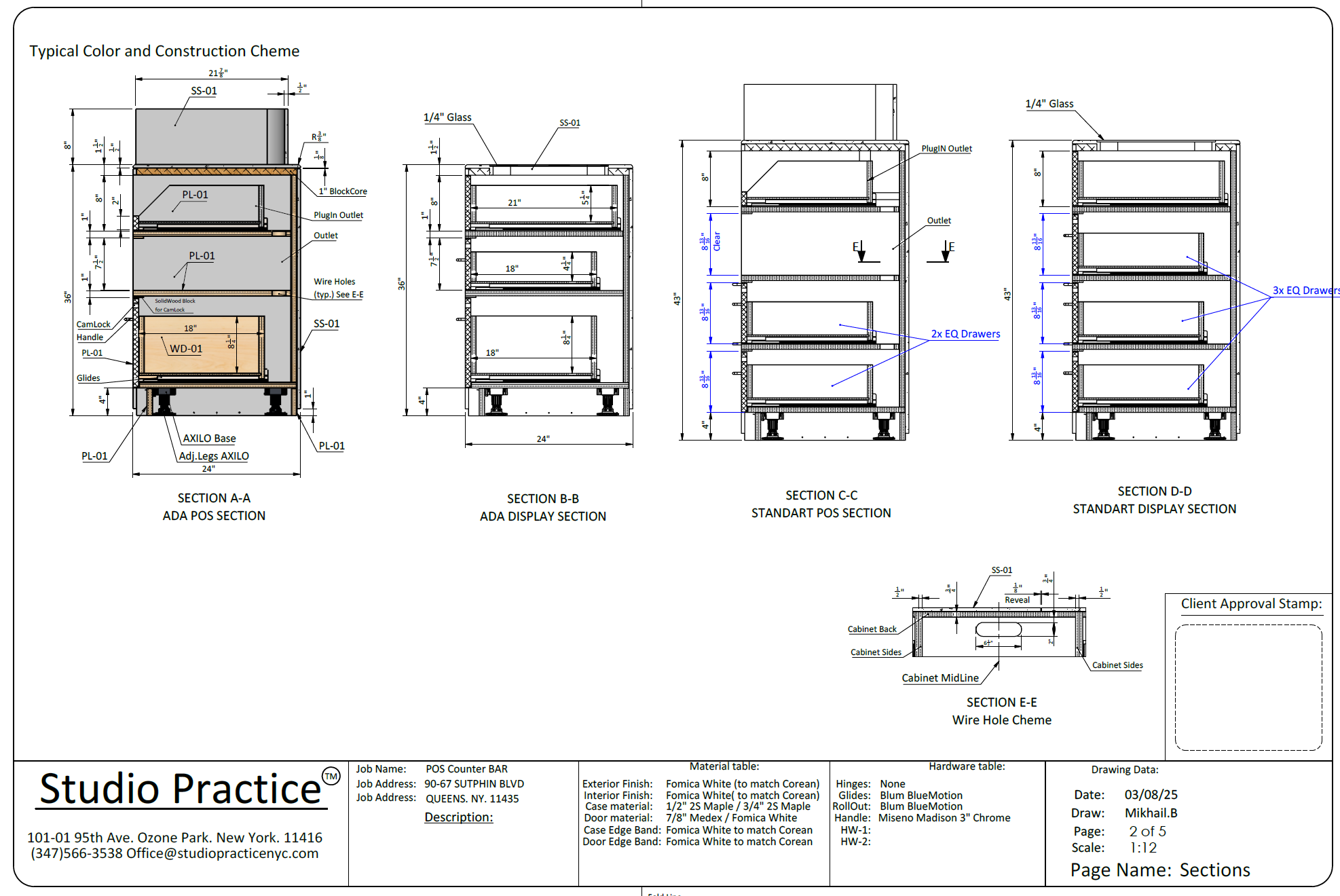

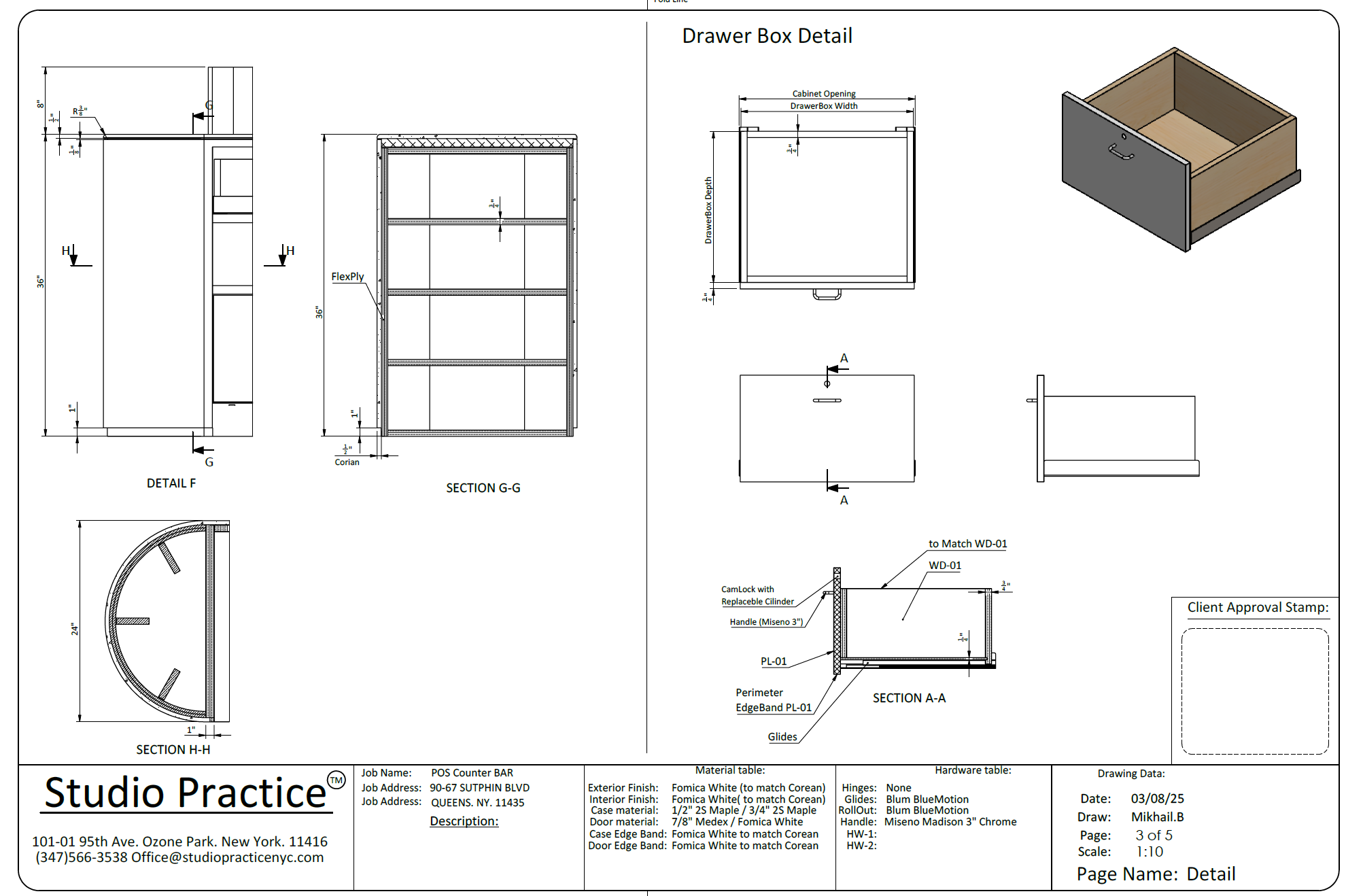

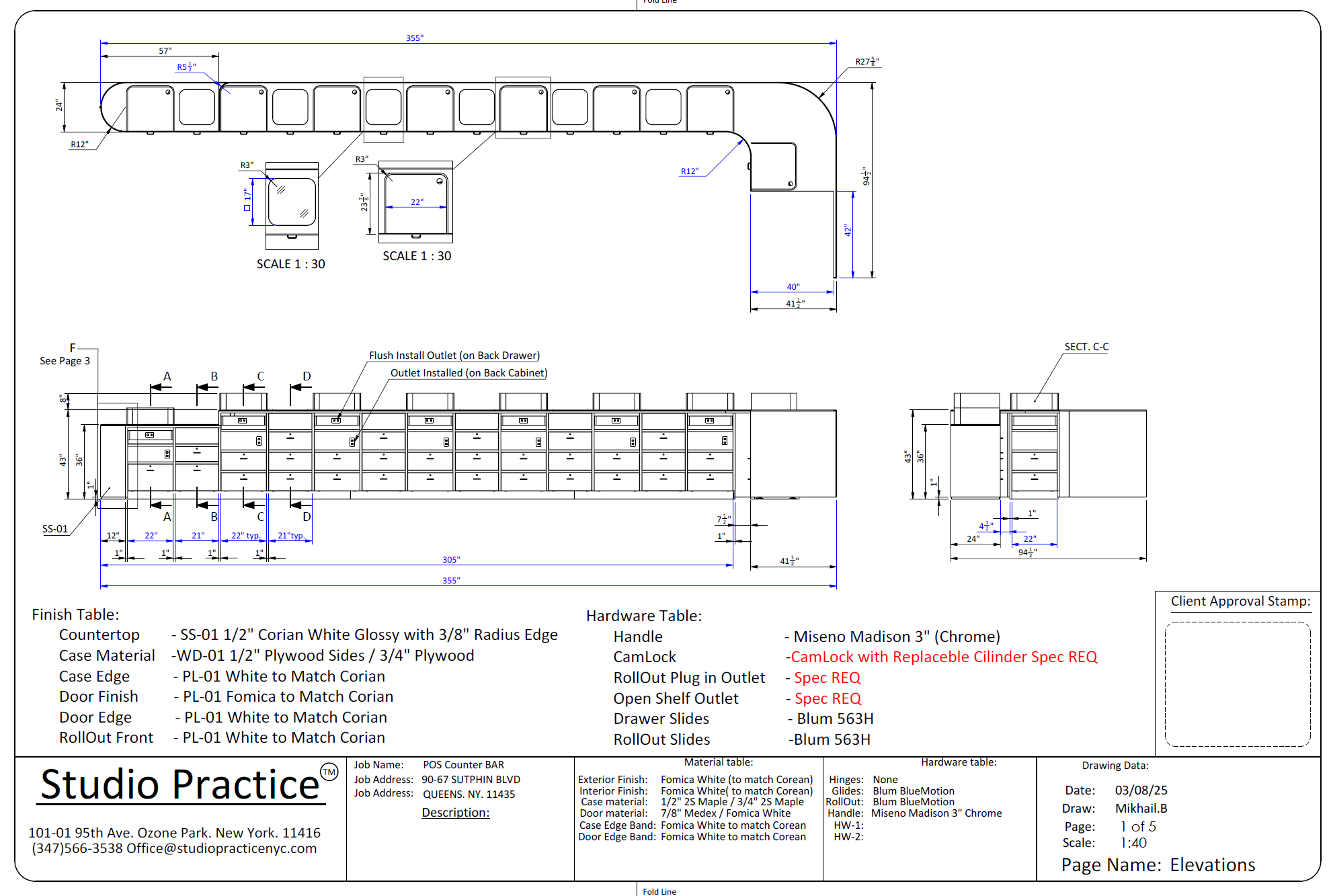

Complete shop drawing package for a commercial POS counter bar at 90-67 Sutphin Blvd, Queens NY. Includes ADA compliant sections, standard display sections, drawer box details, Corian countertop layout with radius edges, wire management scheme, and hardware specifications. Materials: maple plywood carcass, Formica finish, Corian SS-01 countertop. Hardware: Blum BlueMotion hinges and drawer slides, Miseno handles, CamLock security. "Shop drawings developed as a subcontractor for a New York millwork studio"
